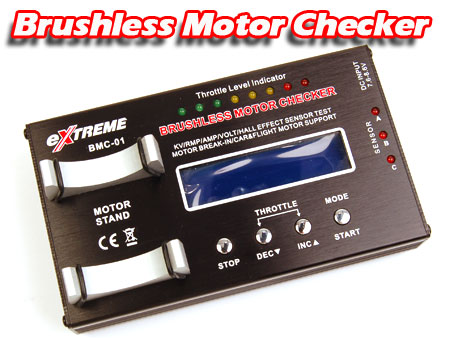

 | Стенд Imax Extreme BMC-01 для проверки б/к двигателей (тип outrunner)
Brand: SkyRC
Артикул: SKYRC-BMC01
Описание:
Specifications Input Voltage: 7.4 - 8.6V (suggested to use a 7.4V 2S1P LiPo Battery)
LCD Display Screen: Blue Backlight Background, White Text, 16 Characters x 2 Lines
Dimension: 136.5mm x 80.6mm x 47mm
Net Weight: 290g
Supported Motor: Sensor or Sensor-less Brushless Motor
a) Standard 540 Size RC Car Motor: 2.5 Turn or Over, 2 Poles (In-runner Motor)
b)Flight Motor: Support Sensor-less Brushless Motor, 6 Poles (Out-runner Motor)
Current Drawn Less Than 18A at 8.4V Without Loading
Features
Motor Checker is a very sophisticated electronic device. It has three main functions:
Brushless Motor Checking (Both Sensor & Sensor-less)
KV Measurement (Accuracy tolerance 5%)
RPM Measurement
Hall Effect Sensors Test
Brushless Motor with Sensors Only
Motor / Car Diff Break-in
Fix Voltage from 2.5V to 7.2V or 10 Steps Cycle with Variable Voltage Setting From 2.5V to 7.2V
Минимальный заказ - 2000 р
Скидки
От 10000 р. - 5%
От 35000 р. - 7%
От 100000 р. - 10%
Доставка
По Москве - 300 р.
За МКАД - 500 р.
От 25000 р. - бесплатно
|
12600 руб.
|  |
